A seriously sassy, stylish, 75% split
The SNAP is a 75% split mechanical keyboard kit with support for dual rotary encoders, dual OLED displays, speaker, and RGB underglow. We took all the best parts of the NIBBLE and added some of the most popular requests (true split shift/space/backspace, anyone?). The SNAP is configurable, programmable, and best of all, easily assembled.

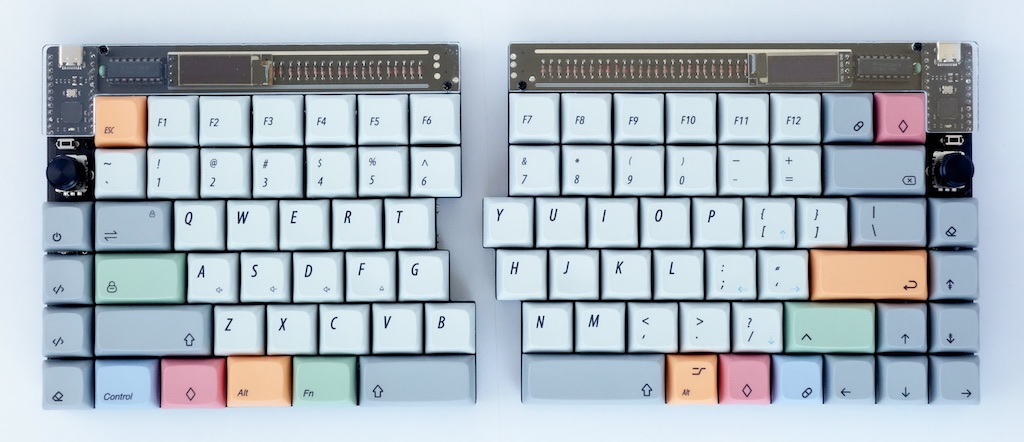

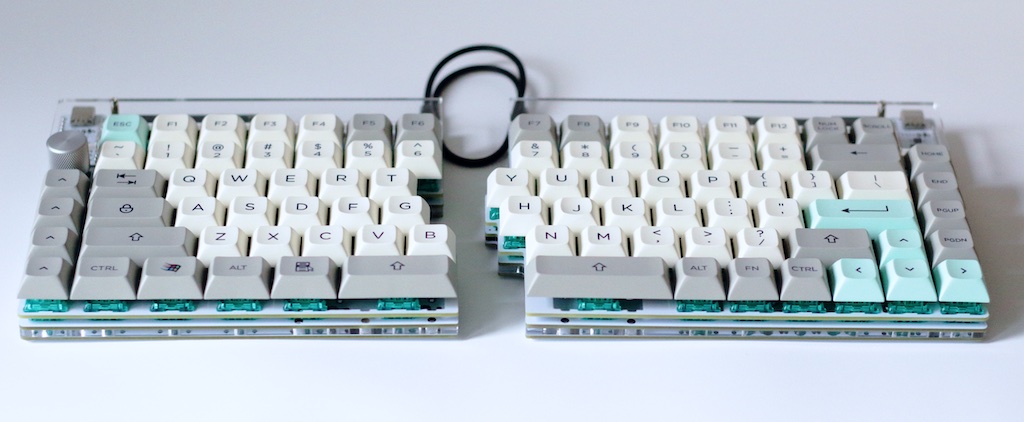

Together, or separate?

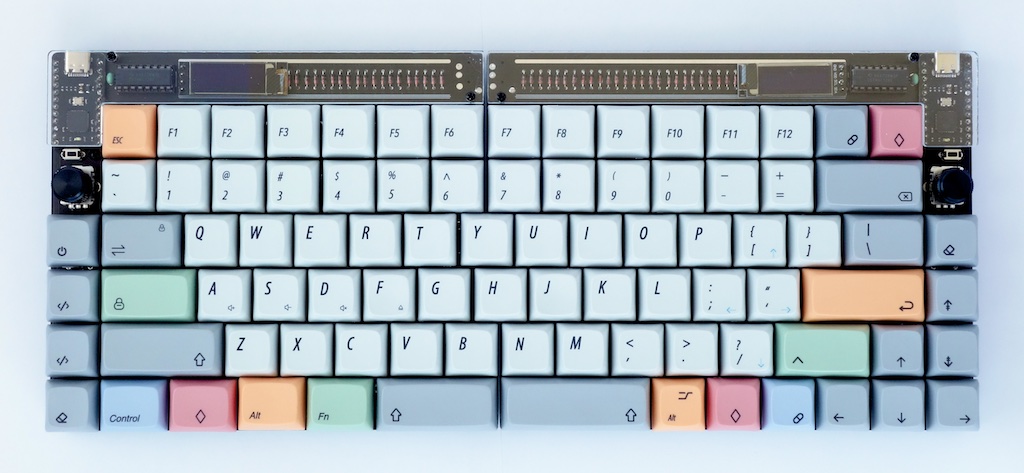

Use the SNAP in split mode, or snap it (whoa, get it?) together for a more traditional layout. Strong internal magnets hold the two sides together and magical spring-loaded pogo pin contacts mean there's no need for a TRRS cable when the two sides are attached. It just works.

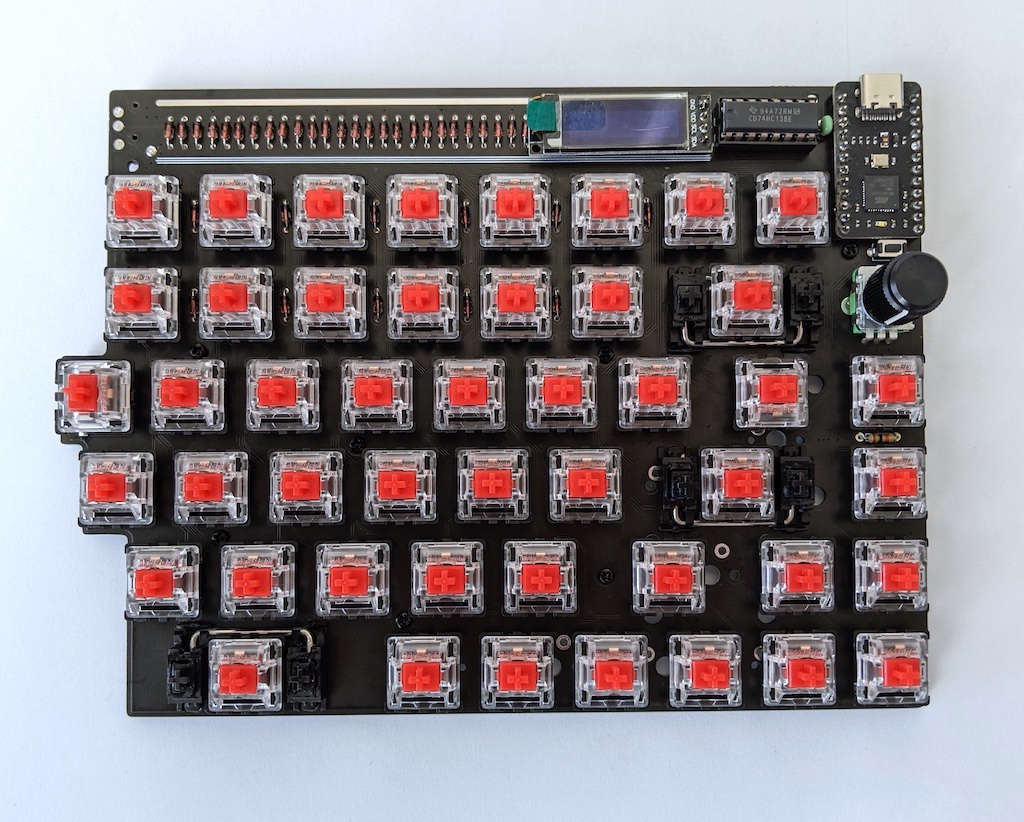

100% through hole design*
The SNAP uses a Pro Micro MCU instead of a discrete micro-controller chip. It offers the fun and aesthetic of a kit without having to worry about soldering the difficult bits like USB connectors. All required parts (diodes, caps, and ICs) are through-hole, meaning they're easy and forgiving to solder.
*Optional underglow LEDs are surface-mount
RGB underglow ready
10x optional bottom-mounted SMT LEDs shine nicely through the acrylic support material. RGB underglow is supported natively in QMK, allowing for easy programming and configuration.
Multiple Layout Options
The SNAP supports many different key configurations and layouts: Split space, split backspace, split shift, ISO enter, and more. Check out the official configuration options and layout. Since it runs QMK firmware and uses VIA, it's easy to change keymaps, program macros, and customize functionality, even beyond what's been discussed here.
See it in the wild
Check out community-posted images sourced from the nullbits Discord server, Reddit, and more.
Recommended Accessories
Just in case you want to make your SNAP, well, snappier.
- Display layer status, keyboard info, WPM and more with a color-matched 0.91" OLED Display
- Add compatibility for 3-pin switches, hotswap sockets, and add stability to your build with color-matched FR4 Switch Plates
- Expand beyond one rotary encoder with a rotary encoder and knob pack
Included
(in the box)
- Top & bottom PCBs
- Top & middle acrylic supports
- M2 standoffs & screws
- Core electronic components:
- 1N4148 axial diodes & reset switch
- WS2812 RGB underglow LEDs
- Speaker, magnets, and pogo pins
- 1x rotary encoder & color-matched Kilo knob
- Quickstart card
- TRRS cable
- 8x mini bumpons
Not included
(you'll also want)
- 2x Pro Micro Compatible MCU. Consider using a Bit-C!
- PCB-mount stabilizers: The SNAP requires 5x 2U stabs*
- 2x 2U stabs - one for each spacebar
- 3x 2U stabs - for left shift, enter, and backspace
- *[Optional] - 1x 2U stab if building with a 2.75U right shift
- Qty. 92 PCB mount MX-compatible keyswitches & keycaps
- [Optional] Mill-Max 0305, 3305, or 7305 hot-swap sockets
- Tools:
- A good fine-tip soldering iron
- High quality thin solder
- Side cutting snips for trimming leads
- A fine-tip Phillips (#00 or #0) screwdriver
